DEC LK521 prototype

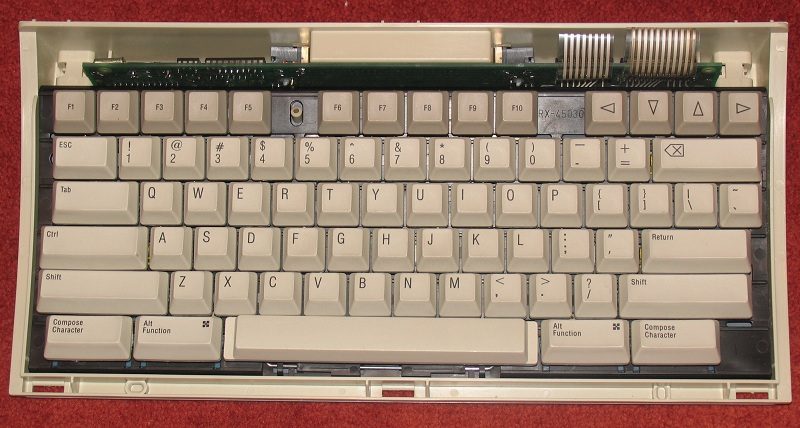

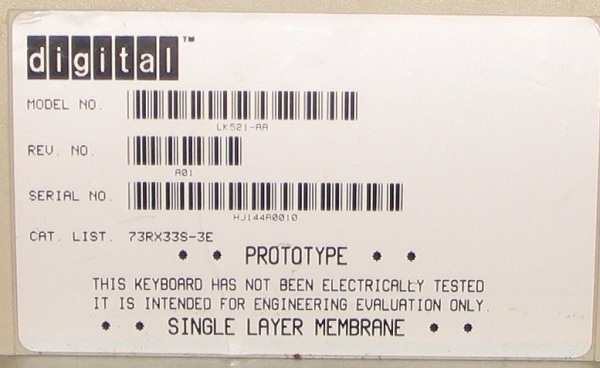

My first post here! This is a DEC LK-521 prototype keyboard.

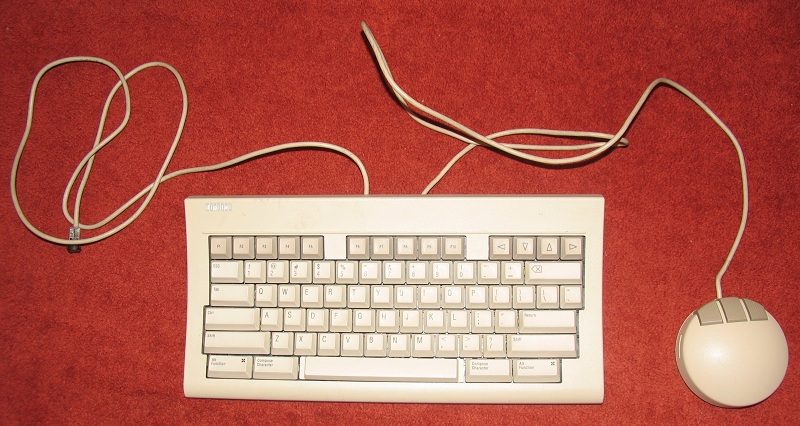

It is similar to the DEC LK-421 keyboard used with their Unix terminals/workstations except it has a peripheral bus (like Apple's ADB) instead of the mouse and keyboard connecting to the computer with separate connectors. As far as I know, the bus was never used in production systems.

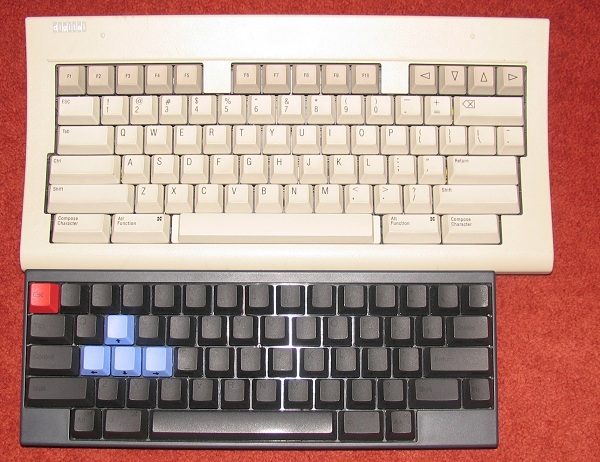

I think that this keyboard, along with the Sun Type 3, was the inspiration for the layout of the HHKB.








이전 댓글 4
montroyal 2010-09-10 09:35
왠지 좀 어렵게 생겼다. 배열은 왜 삐뚤게 해 놨을까?
최이규 2010-09-10 10:19
Oh, I've seen this model in ebay. I have interested in this then give up soon because I could'nt sure what the switch type is.... so, what is the switch of the 'prototype'?
webwit 2010-09-12 00:22
Nice catch!
Lopel 2010-11-09 21:06
우와 신기하게 생겻군요.. 잘보고갑니다
