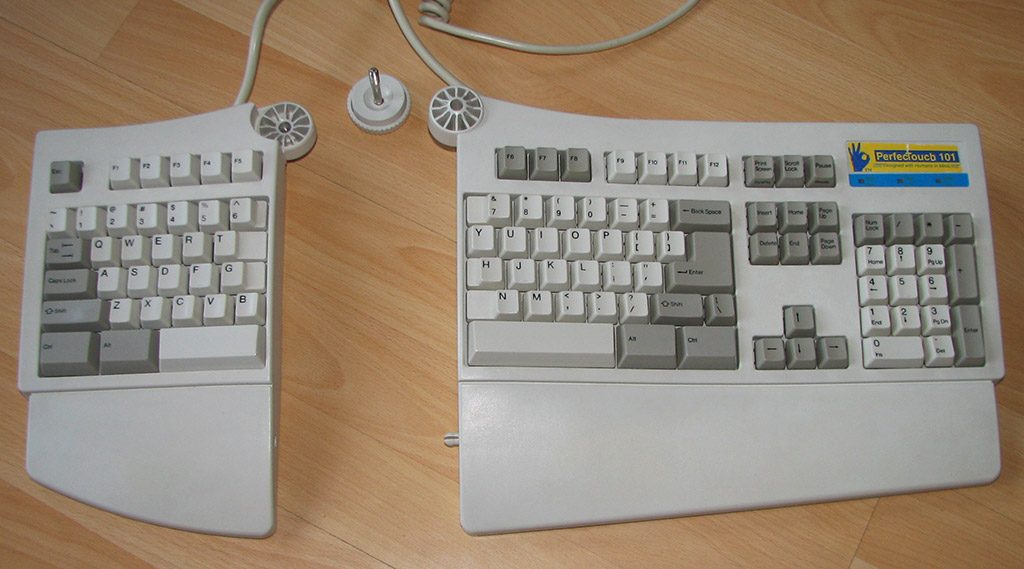

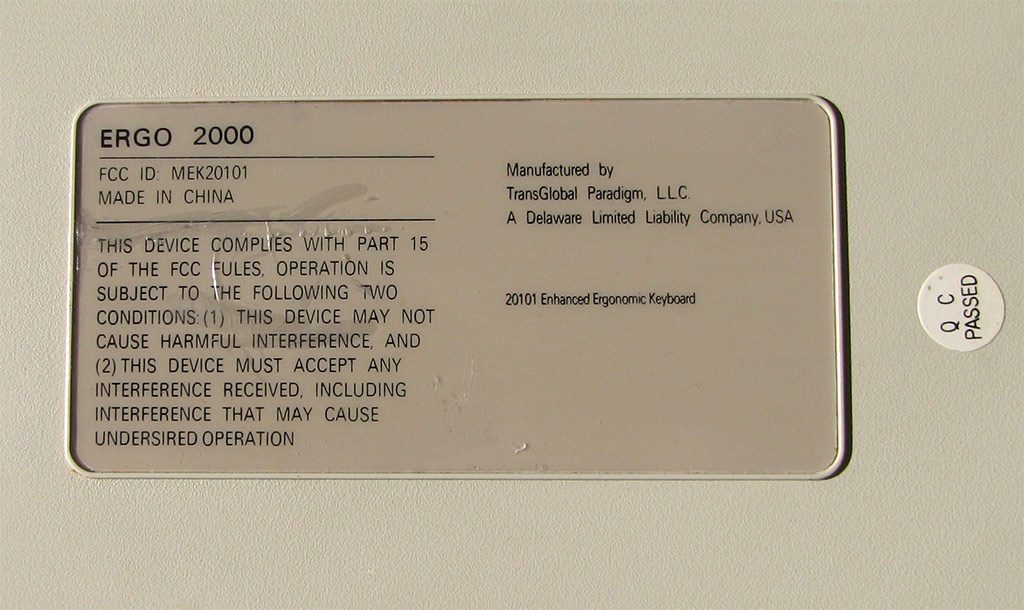

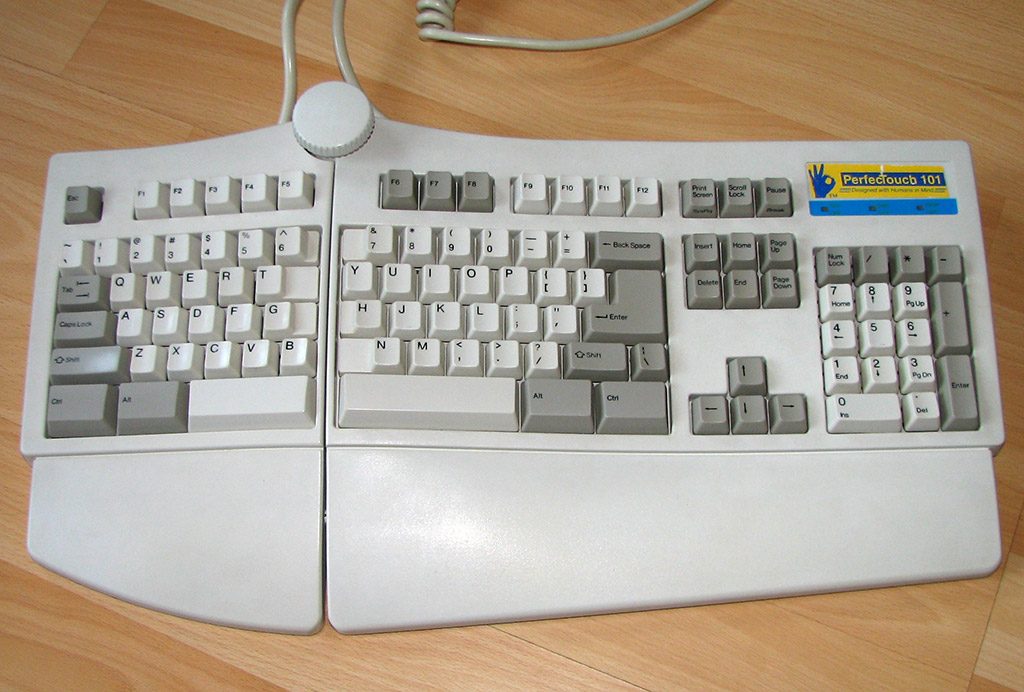

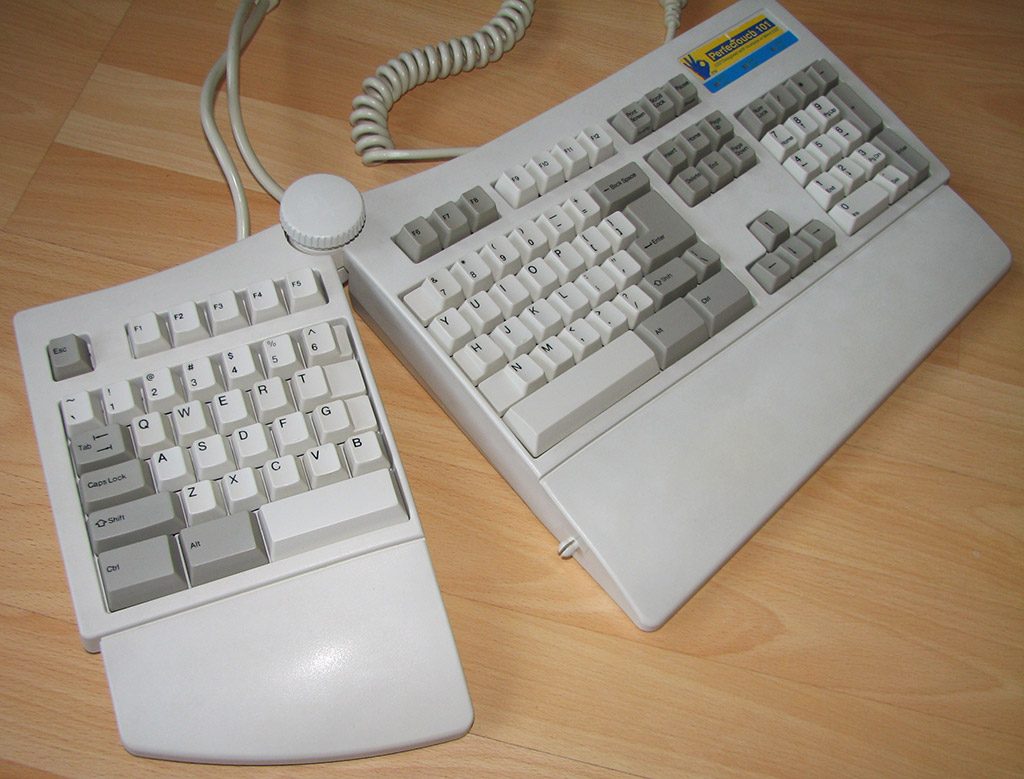

PerfecTouch 101 Ergo 2000

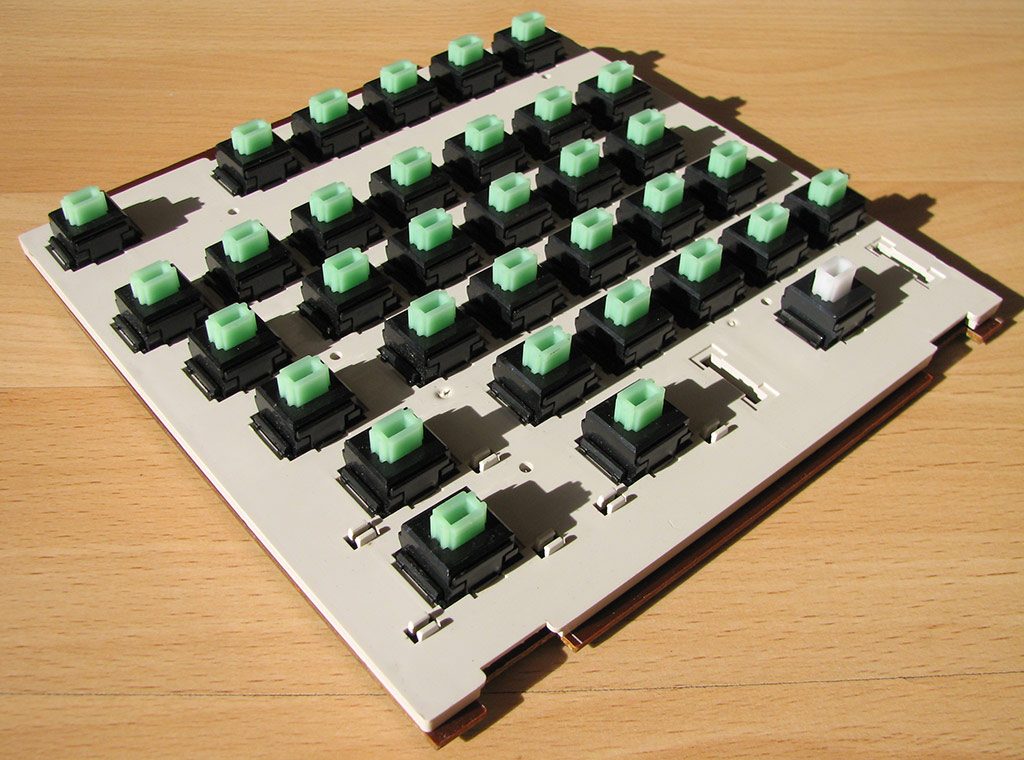

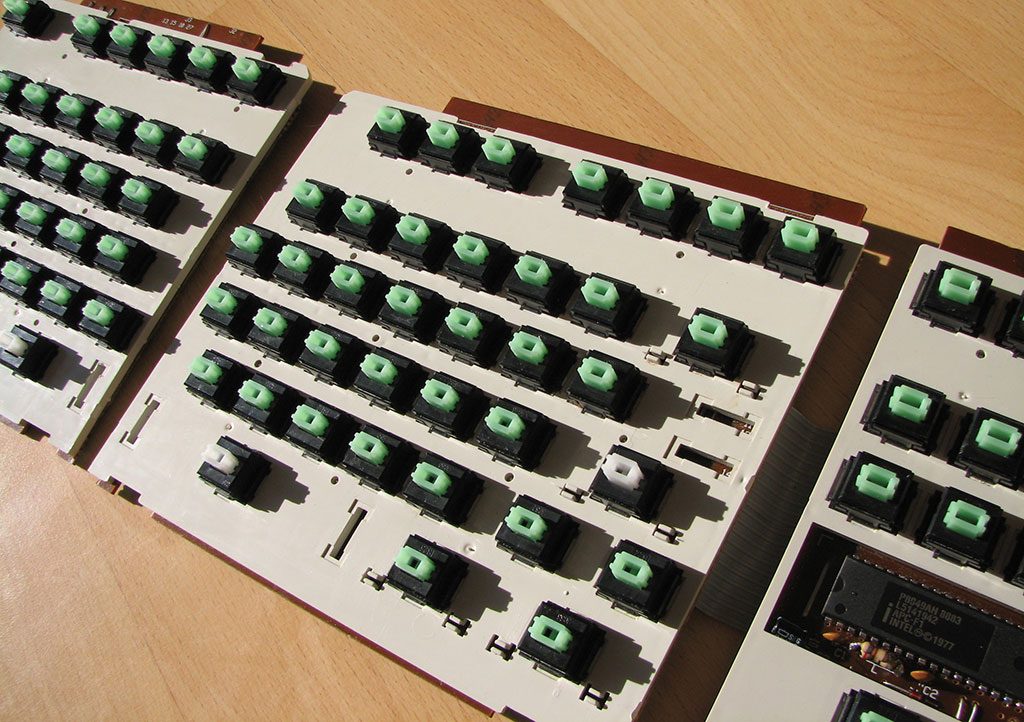

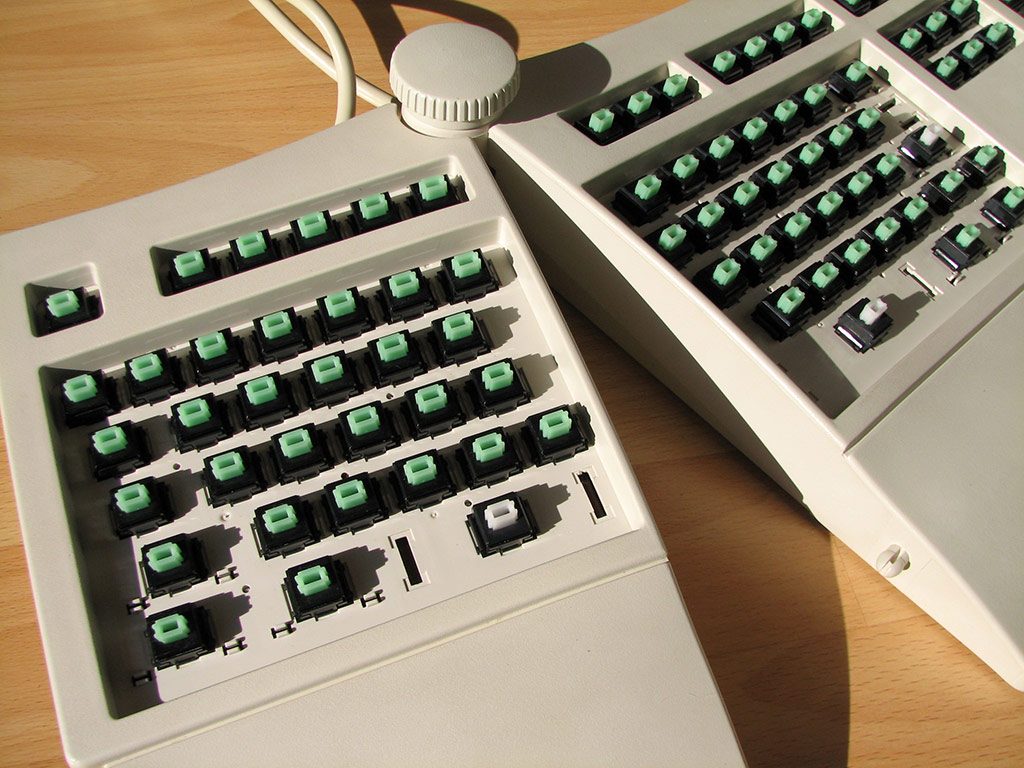

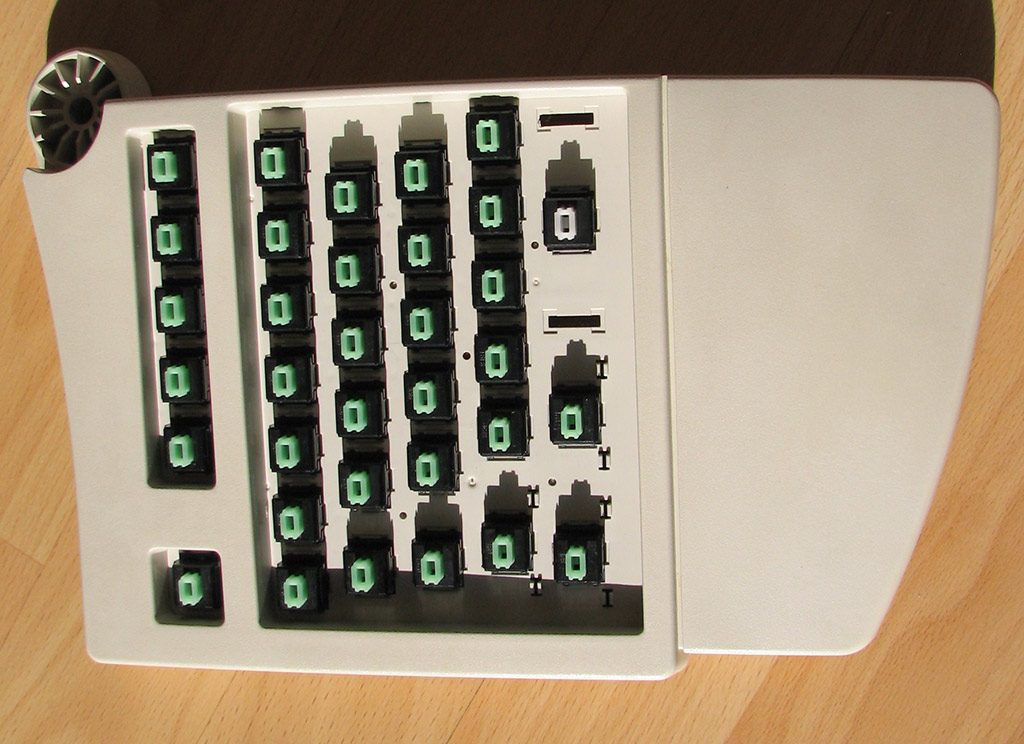

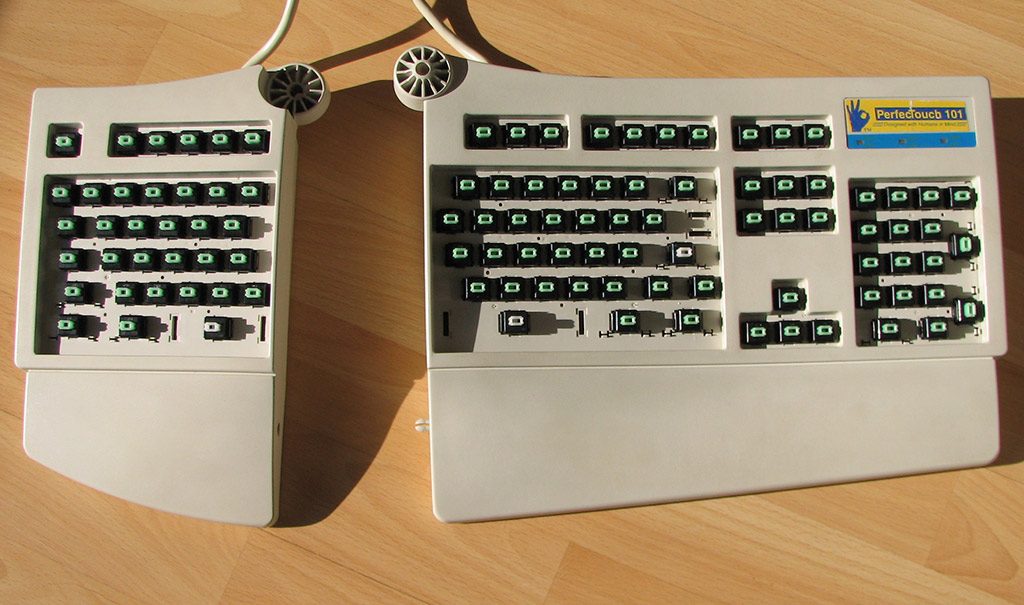

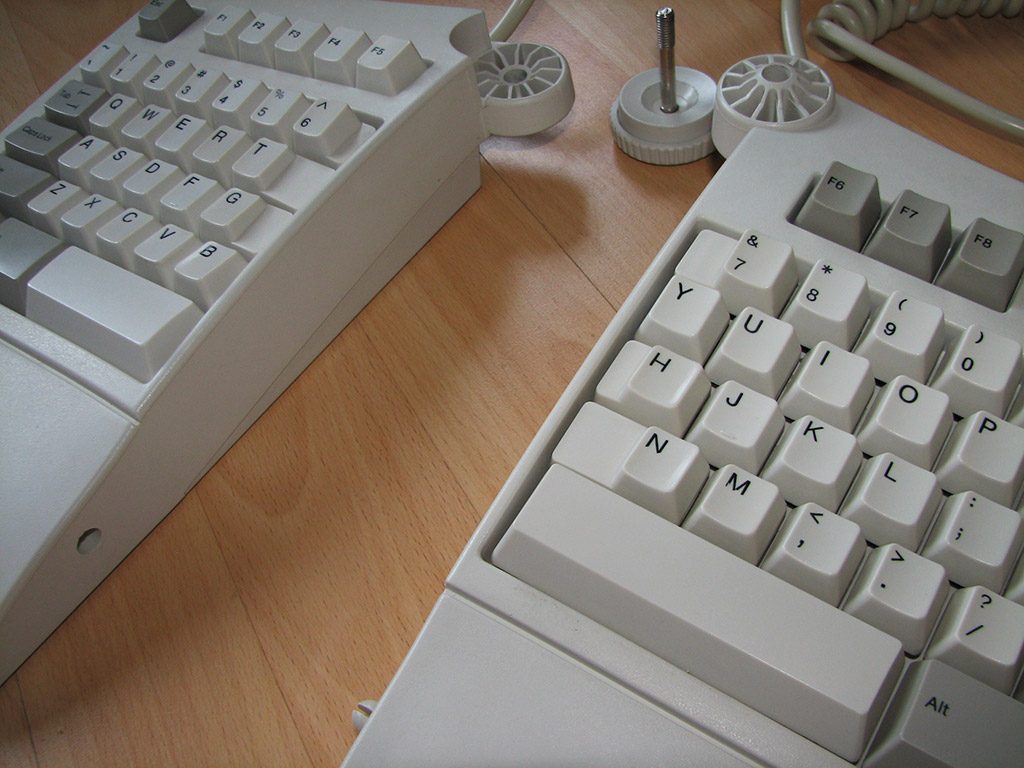

Split keyboard with green Alps (interesting choice..)

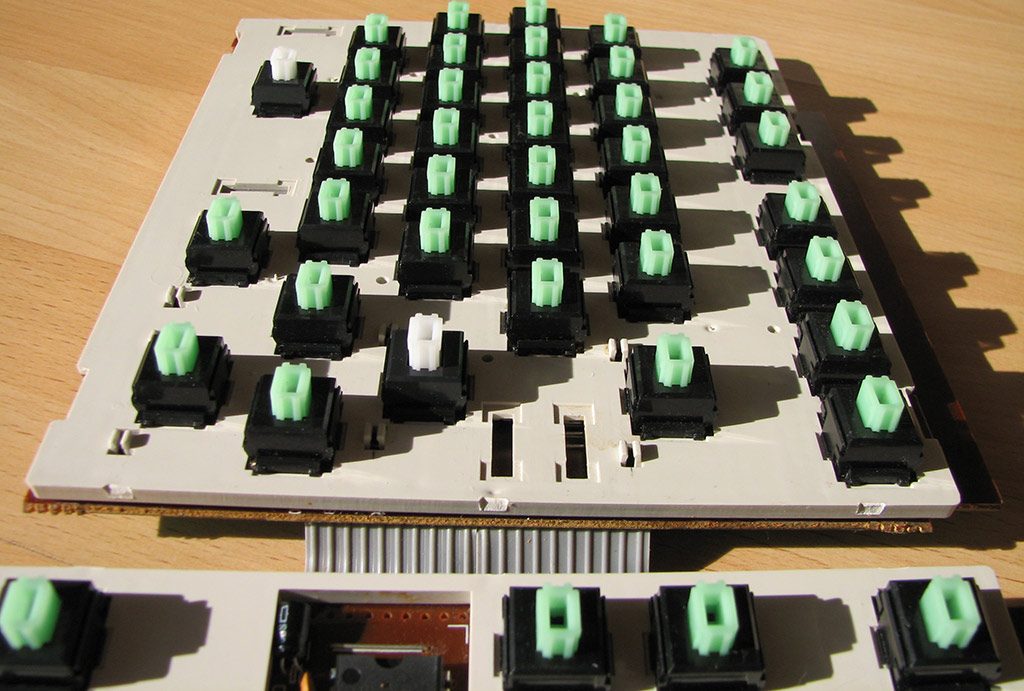

The white Alps used for the space bar and Enter are not White Alps, but are linear as well and require some more force.

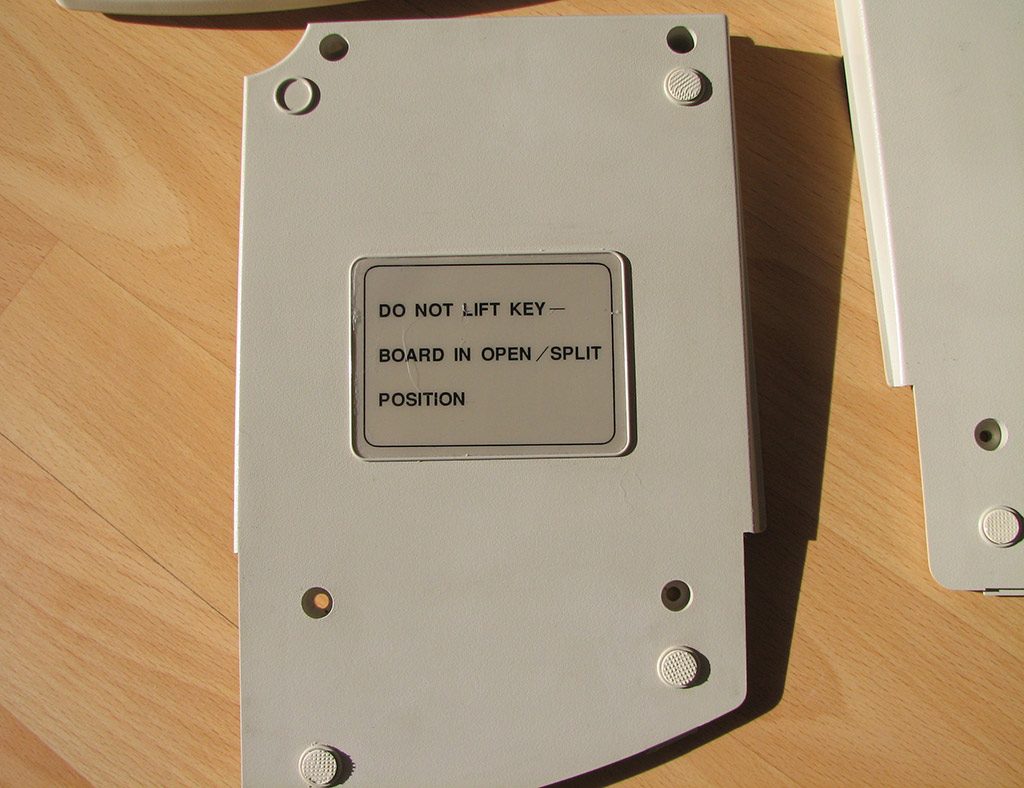

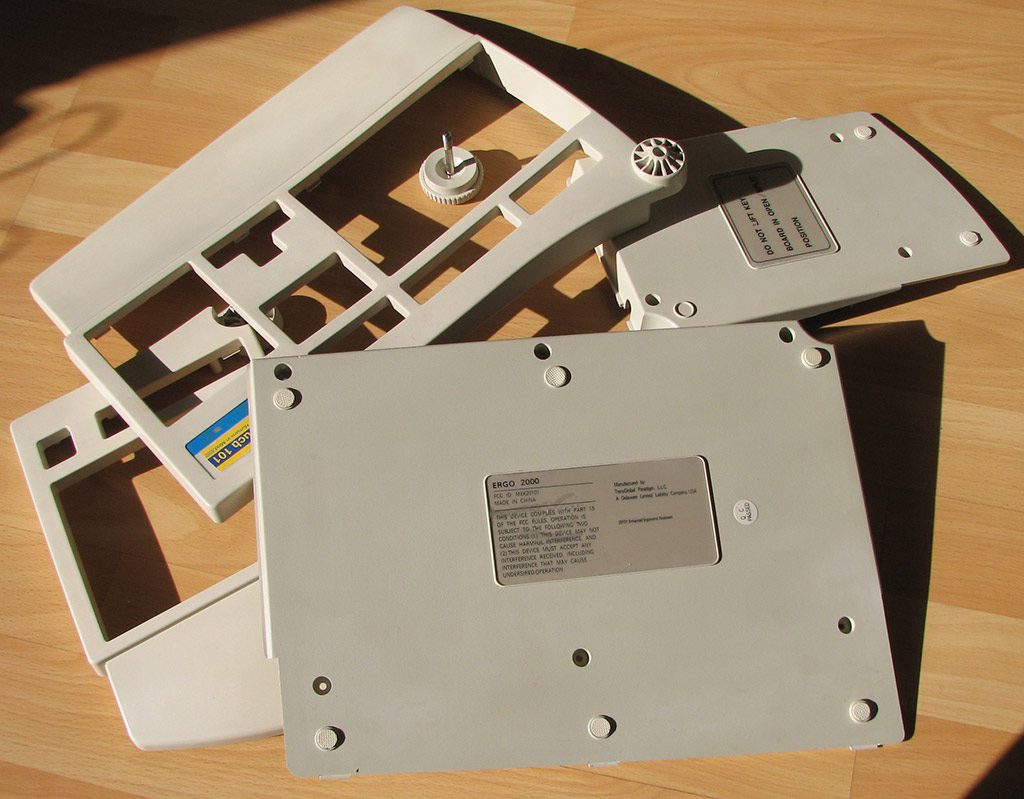

No adjustable feet - no feet at all.

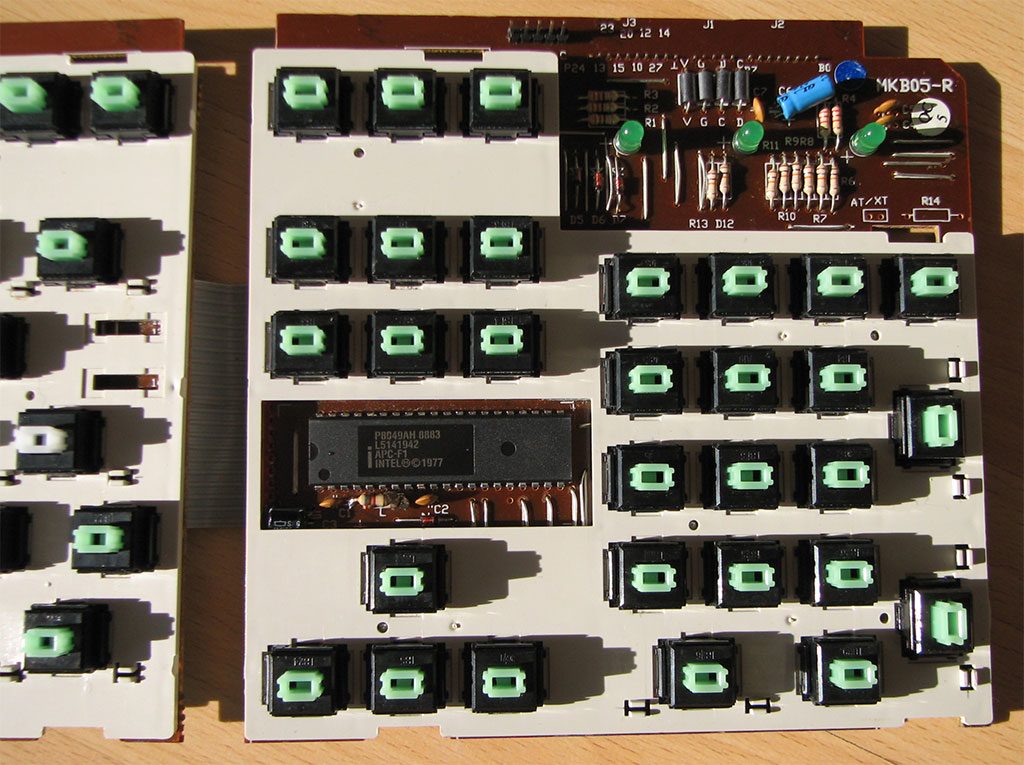

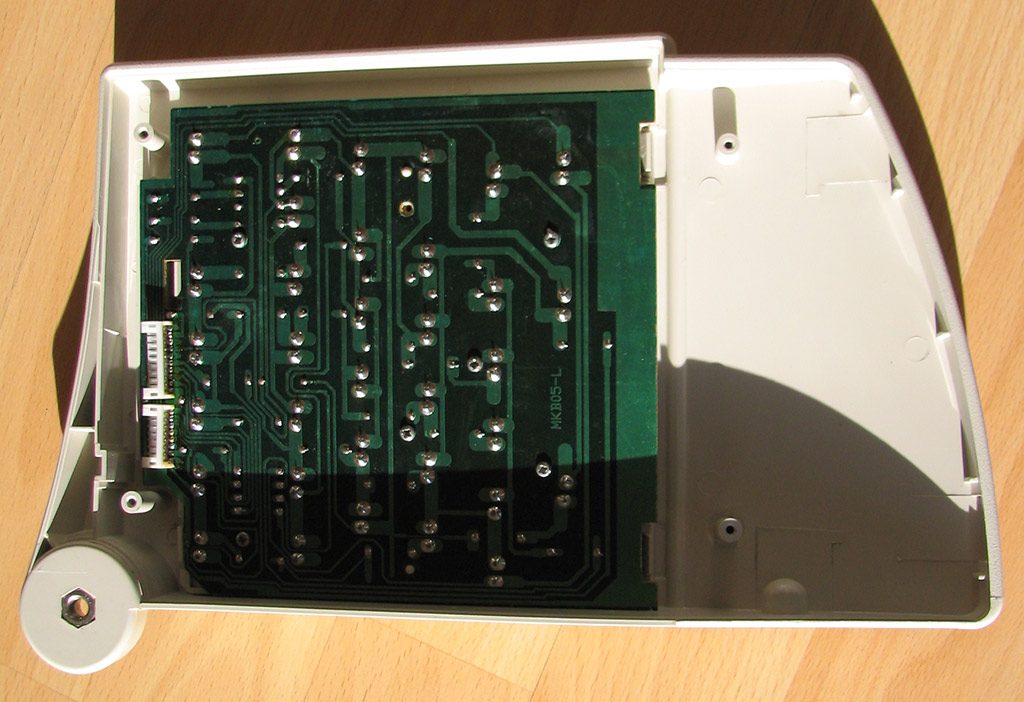

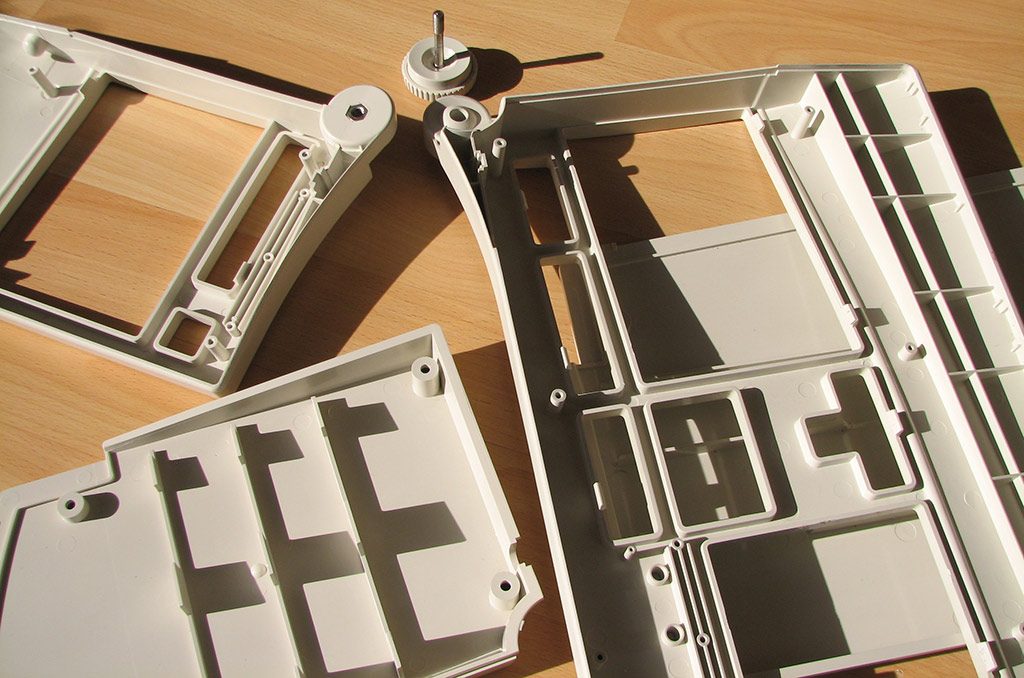

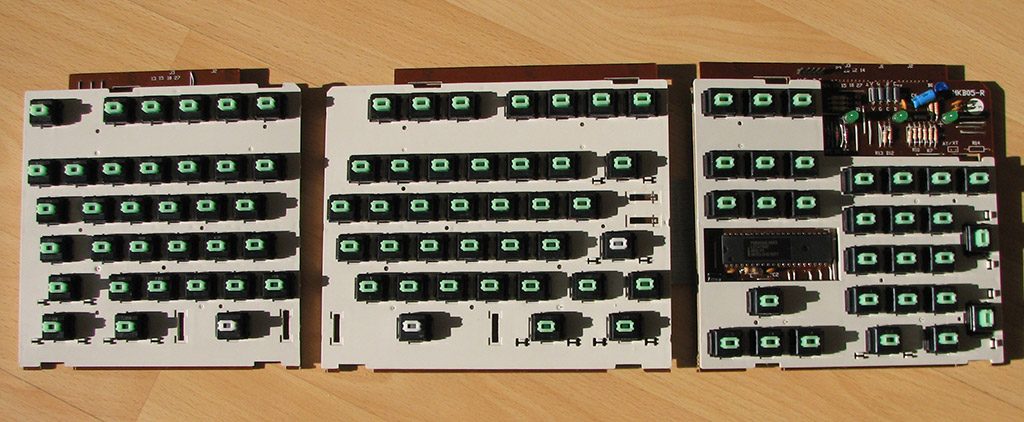

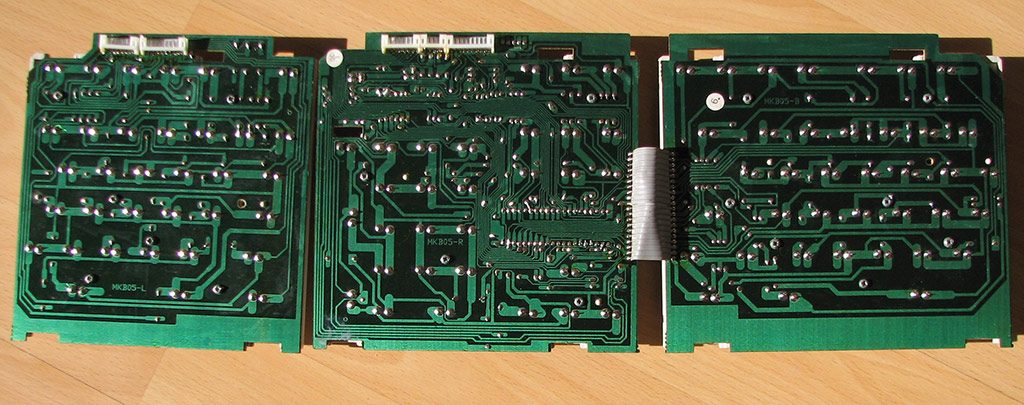

Very cheap construction - almost to a point were you can admire it, even cheaper than the Cherry 5000. In production the pcb and plate are in one piece and then broken in three pieces.

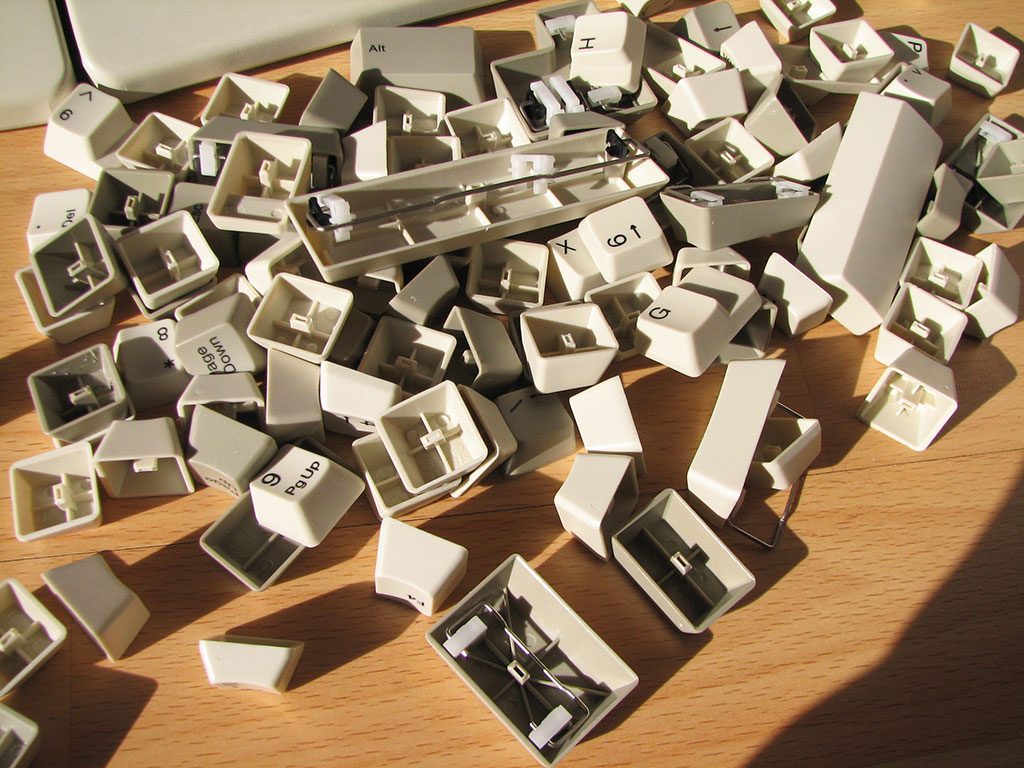

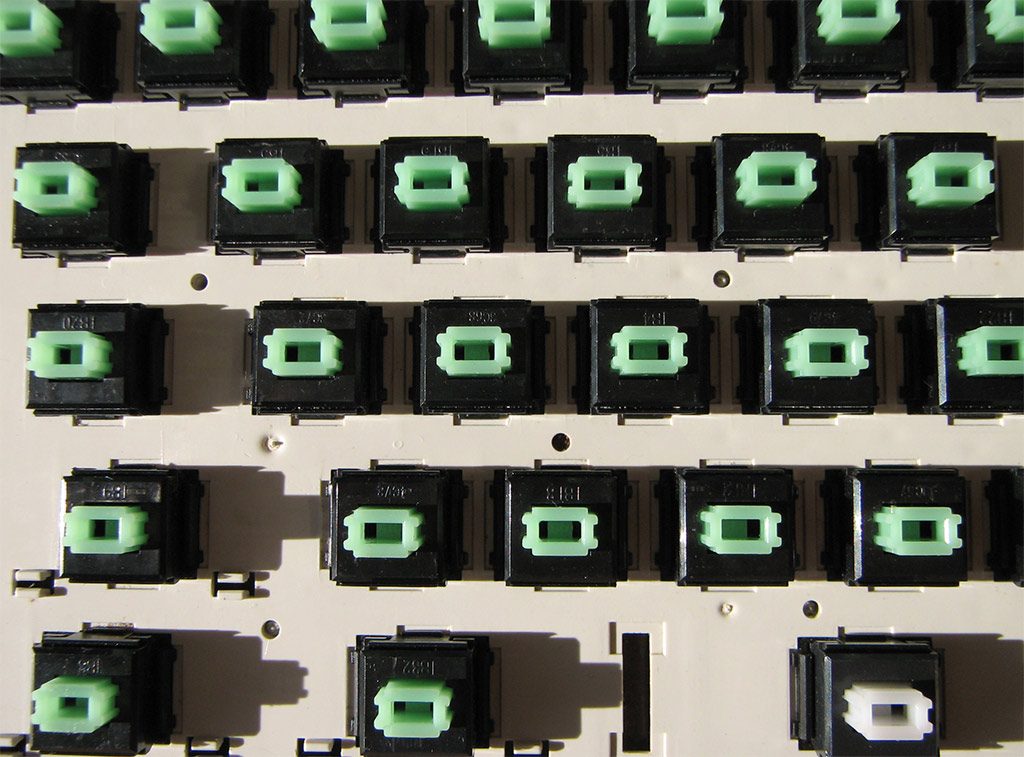

The green Alps don't feel as well as on my other green Alps boards - I think this is because of the clunky key caps and because they appear to be of the XM type.





















이전 댓글 17
finkl 2010-10-11 10:07
헉; 이거 대박이네용 ㅡ,.ㅡ
klklkl 2010-10-11 11:17
흠!~~ 유사축으로 보이는군요 @@......키보드는 매우 잘 만든듯해보이네요
sixty 2010-10-11 12:49

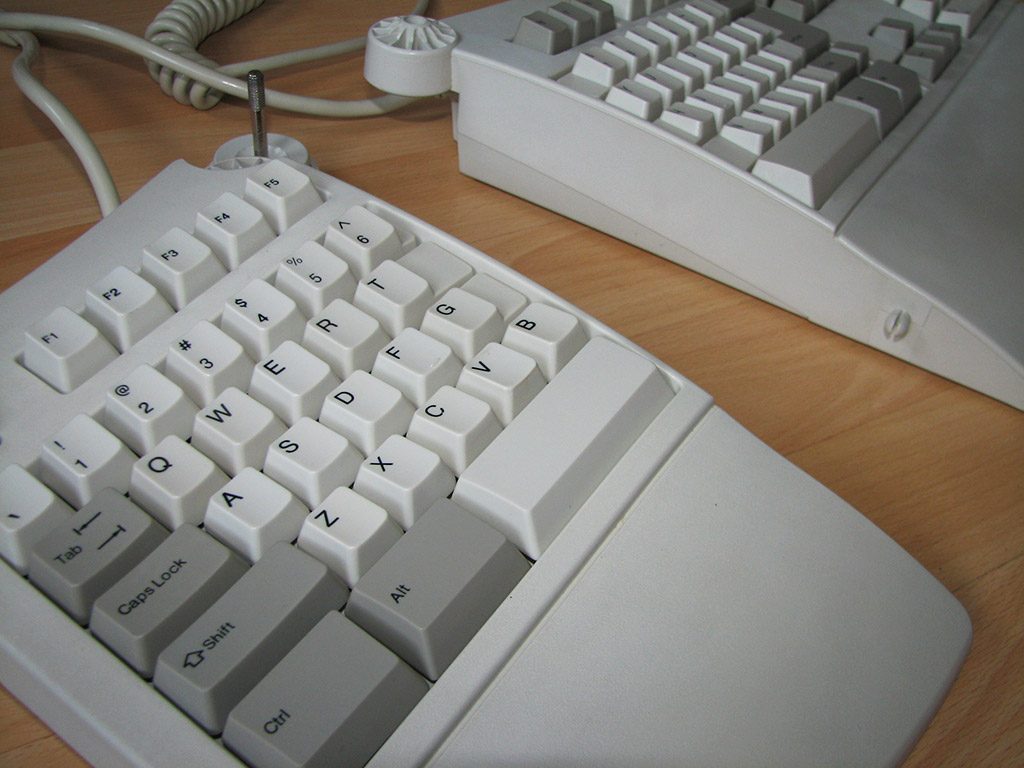

거대한 CTRL&ALT... ㅋㅋThose CTRL&ALT keys mean serious business.
지노다 2010-10-11 13:51
희한한 키보드 많네요
Sandy 2010-10-11 19:50
ctrl,alt...@_@
삼류호구 2010-10-11 20:11
세상은 넓고 키보드는 많다
예린아빠 2010-10-11 20:42
녹축인가요?-0-
부산직&택배 2010-10-11 22:43
먼가 포스쩔;;;  녹색은 첨본당 =ㅁ=;; 생긴건 알프스같이생겼긴한뎅?
요미코 2010-10-11 23:53
ALPS ERGO! Fantastic
듀터라노미 2010-10-12 01:34
최근에 리니어에 관심이 많아서 알녹을 한번 써보고 싶은데 괜찬아 보이네요 +ㅁ+
taijimania 2010-10-12 02:10
알프스 리니어 계열중에서는 그래도 키압이 낮은게 녹축이라고 들었는데.. 리니어를 좋아하지는 않지만 키감이 궁금하네요..
울버린 2010-10-12 02:43
klklkl님 말씀대로 유사축으로 보이네요 -0-? 보통 알프스 리니어는 LED홀이 있는데... LED홀 없는 리니어도 있었는지 궁금하네요 ㅎㅎ
디포리안 2010-10-12 02:46
별 신기한 키보드를 많이 알고 계신듯..ㅋㅋ
webwit 2010-10-12 03:53
I like the green Alps! First I compared them to Cherry Browns, but requiring a little less force and linear. I think light, linear switches are much nicer than the heavier ones such as Cherry Blacks. Now I have tried Cherry Reds and green Alps are closer to those.But the green Alps on the IBM JX feel much better! These are complicated "real Alps", the ones on the PerfecTouch "fake" XM switches (unless an Alps expert corrects me).IBM JX (can you find the differences? ): I also have this Magitronic, these are fake XM: I prefer the IBM JX green Alps over Cherry Red, but I prefer Cherry Red above the fake green Alps.
육체 2010-10-12 13:28
뭐하는 분인지 궁금하네요. 올리는 사진들 보면 죄다 독특하던데...
호호아빠 2010-10-12 23:09
Wow, It is a pretty green Alps! I like green Alps, also.
정재원 2010-10-13 00:14
아론에서도 유사알프스에 녹색 나온게 있었는데.. .키감 별로 다를껀 없던데요..
